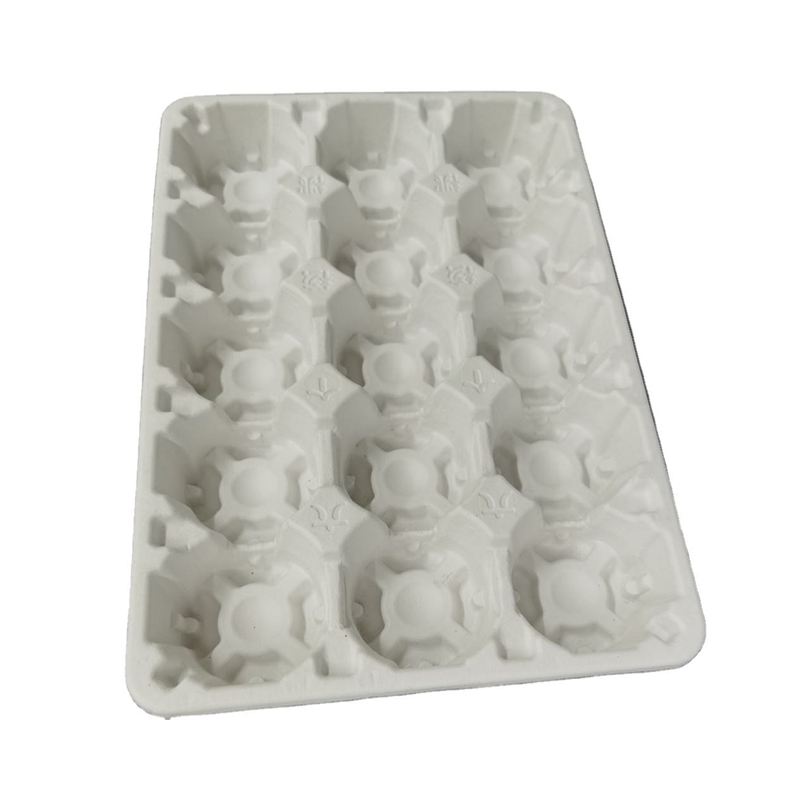

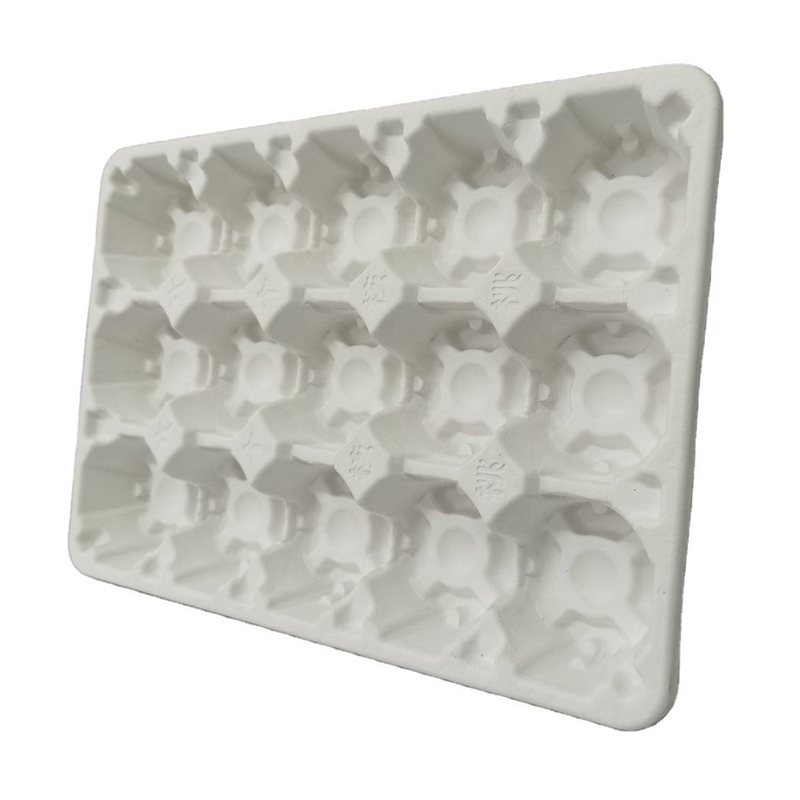

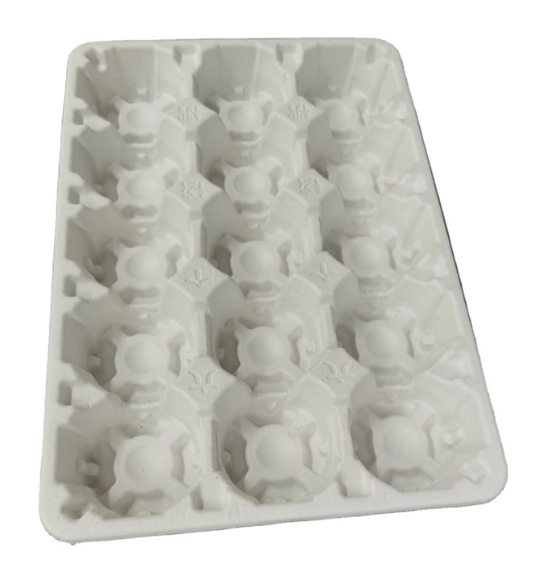

This drink paper tray is designed for commercial logistics and bulk distribution of canned beverages. It is customized for 240ml cans with concentrated gravity centers, addressing common issues such as tray deformation, can collision and paint damage during transport. The product uses recycled pulp material and features structural optimizations to meet the needs of commercial procurement and daily business operations.
The structural design of this drink paper tray focuses on load-bearing capacity and stability during one-hand lifting, which is essential for efficient commercial handling.
This tray is manufactured using high-fiber-concentration recycled pulp. Compared with standard pulp trays, its wall thickness is increased by 20%-30%. This design is tested to ensure that when fully loaded with six 240ml cans, the bottom remains flat when lifted with one hand, avoiding spillage or can displacement caused by sagging.
To accommodate the rolled edge of can bottoms, the slots of this drink paper tray are designed with increased depth. The bottom of each slot features micro-protrusions (reinforcing ribs) that interlock with the can base. This structure reduces severe displacement of cans during transport and eliminates collision noises between containers.
The tray is engineered to provide targeted protection for cans, minimizing damage during shipping and handling.
This drink paper tray is strictly matched to the standard diameter of 240ml cans, which ranges from 53mm to 54mm. The slot spacing is calculated to maintain a 3mm-5mm safe buffer gap between adjacent cans. This gap prevents direct friction between cans, which could cause scratches on the can surface paint.
Molded pulp has a natural porous fiber structure. In side-by-side tests with plastic trays, this pulp drink paper tray absorbs more than 90% of minor vibrations generated during transport. This reduces the risk of denting on can bodies caused by road bumps and handling impacts.
Parameter | Specification |
Material | High-fiber-concentration recycled pulp |
Wall thickness increase | 20%-30% (compared with standard pulp trays) |
Compatible can volume | 240ml |
Compatible can diameter | 53mm-54mm |
Buffer gap between cans | 3mm-5mm |
Vibration absorption rate | >90% (compared with plastic trays) |
Load capacity | 6 cans |
Slot feature | Deep-recessed with micro-protrusion reinforcing ribs |
This drink paper tray is made from recycled pulp material, which aligns with the sustainable development goals of modern business operations. The material is biodegradable and recyclable, helping commercial users reduce plastic waste and meet environmental compliance requirements. Unlike plastic trays, this pulp product does not leave persistent microplastics in the environment after disposal.
For businesses seeking to enhance their green brand image, this eco-friendly drink paper tray provides a practical packaging solution that balances functionality and environmental responsibility. Customization options are available for businesses with specific branding or size requirements, subject to minimum order quantities applicable to commercial procurement.
This drink paper tray is specifically designed for 240ml cans with a standard diameter of 53mm-54mm. It is optimized for cans with concentrated gravity centers, such as nut-based beverage cans.
No. The tray features a thickened high-fiber pulp construction with wall thickness increased by 20%-30%. Testing confirms that when fully loaded with six 240ml cans, the bottom remains flat when lifted with one hand.
Yes. The deep-recessed slots with reinforcing ribs prevent can displacement, and the porous fiber structure absorbs more than 90% of minor vibrations. These features make the tray suitable for long-distance commercial logistics and last-mile delivery operations.
