Molded pulp packaging is made by dispersing paper or plant fibers in water, depositing the fibers onto a shaped mold through vacuum forming, removing moisture, drying or hot-pressing the molded part, and completing trimming, treatment, inspection, and packing.
Although the basic principle appears straightforward, producing consistent molded pulp packaging requires careful control of fiber composition, slurry concentration, mold design, vacuum pressure, moisture content, drying temperature, dimensional shrinkage, and finishing conditions.
The production route also varies according to the final product. A functional egg tray, a liquid-resistant medical container, and a smooth cosmetic insert may all be molded from fiber, but they require different materials, molds, pressing methods, drying systems, tolerances, and quality controls.

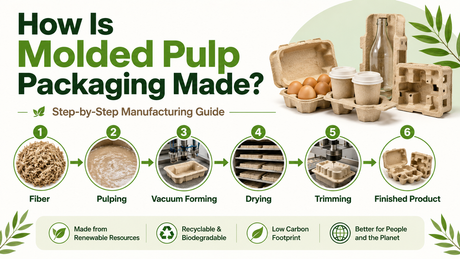

This guide explains each stage of the molded pulp manufacturing process, from the initial product brief to finished packaging ready for delivery.
Production stage | Main purpose | Key control points |
|---|---|---|
Product analysis | Define packaging and performance requirements | Dimensions, weight, protection, appearance, moisture exposure |
Fiber selection | Establish the material foundation | Fiber source, cleanliness, length, color, strength |
Pulp preparation | Separate and disperse fibers in water | Pulping time, fiber consistency, contamination removal |
Slurry formulation | Adjust the mixture for forming | Concentration, additives, temperature, uniformity |
Mold design | Create the required three-dimensional structure | Draft angles, drainage, ribs, wall thickness, tolerances |
Vacuum forming | Deposit fibers onto the mold | Vacuum level, forming time, fiber distribution |
Dewatering | Remove excess water before drying | Moisture uniformity, transfer stability, deformation risk |
Pressing and drying | Stabilize the shape and remove moisture | Temperature, pressure, drying time, shrinkage |
Trimming and finishing | Complete the final shape and appearance | Edge accuracy, holes, embossing, surface finish |
Functional treatment | Add application-specific performance | Water resistance, oil resistance, color, antistatic properties |
Quality inspection | Confirm product consistency | Dimensions, weight, moisture, strength, appearance |
Packing and recycling | Protect finished goods and reduce waste | Nesting, carton loading, storage conditions, scrap recovery |
The molded pulp packaging process does not begin with a pulping machine. It begins with understanding the product that the packaging must hold.
Before developing a mold, the manufacturer needs to determine:
Product dimensions and weight
Center of gravity
Fragile and load-bearing areas
Acceptable contact points
Required cushioning performance
Outer carton dimensions
Manual or automated packing method
Stacking and palletizing requirements
Moisture, oil, heat, or cold exposure
Surface appearance expectations
Order quantity and production frequency
For custom projects, physical samples, three-dimensional models, CAD drawings, photographs, and packaging test requirements can all be useful.
A technically accurate product model helps the packaging engineer decide where to add cavities, support ribs, positioning walls, ventilation holes, finger access points, and compression zones.
Through a custom molded pulp packaging service, the structure, mold, sample, functional treatment, and mass-production method can be evaluated as one connected project rather than as separate decisions. Dezhou Chunyang’s published workflow includes customer requirement analysis, mold development, sample production, mass production, inspection, and delivery.
The first production decision is choosing a suitable fiber source.
Common options include:
Recycled paper fibers
Recycled cardboard fibers
Virgin wood pulp
Blends of virgin and recycled fibers
Selected agricultural or plant fibers
The material should not be chosen only according to whether it is recycled or virgin. Its suitability depends on the required strength, cleanliness, appearance, forming behavior, surface quality, and intended use.
Recycled fibers are commonly used for transport trays, egg packaging, drink carriers, protective inserts, and other functional products.
They can provide good structural performance, but their color, fiber length, and cleanliness may vary according to the recovered material source.
Repeated recycling can shorten fibers. Shorter fibers may still form well, but the material formulation and product structure may need adjustment to maintain strength.
Virgin pulp generally offers more consistent fiber properties, color, and cleanliness. It may be selected for products that require:
A smoother appearance
Lighter or more uniform color
More precise forming
Cleaner raw materials
Food-contact suitability
Medical or personal care applications
The manufacturer may also blend different fibers to balance performance, cost, appearance, and process stability.
Dezhou Chunyang states that its green manufacturing system uses both virgin pulp and recycled fibers, allowing material selection to be adapted to product strength and cleanliness requirements.
After selection, the fiber material is mixed with water inside a pulper.
Mechanical agitation separates compressed sheets, paper pieces, or recovered materials into individual fibers and creates a pumpable pulp suspension.
The goal is not simply to dissolve paper in water. Paper fibers do not dissolve. Instead, they are separated and dispersed so they can travel evenly through the production system and collect on the forming mold.
During this stage, the manufacturer controls:
Pulping time
Water-to-fiber ratio
Agitation intensity
Fiber dispersion
Pulp temperature
Contaminant removal
Batch consistency
If the pulping time is insufficient, fiber bundles may remain in the slurry and create uneven walls or rough areas. Excessive mechanical treatment may damage fibers or change drainage behavior.
Recovered materials may also require screening, cleaning, or filtering to remove:
Plastic fragments
Staples
Adhesive particles
Sand or dust
Coated paper residues
Other unwanted materials
The cleaned pulp is then transferred to storage or mixing tanks before the concentration is adjusted for forming.
The prepared pulp is diluted with water to create a controlled fiber suspension known as the slurry.
Slurry consistency is one of the most important variables in the pulp molding process. It affects:
Fiber deposition speed
Wall thickness
Product weight
Surface texture
Drainage efficiency
Forming cycle time
Strength consistency
If the fiber concentration is too high, the molded part may become excessively heavy or uneven. If it is too low, forming may take longer and certain areas may not receive enough fiber.
Continuous circulation is normally required to prevent fibers from settling in the tank. The slurry must remain sufficiently uniform so that one production cycle does not differ significantly from the next.
Additives may be introduced when the product requires specific properties, such as:
Improved wet strength
Water resistance
Oil resistance
Heat resistance
Antistatic performance
Color adjustment
Improved release from the mold
Enhanced surface characteristics
However, additives should be selected according to the application and relevant compliance requirements.
A disposable food tray, an industrial electronics insert, and a medical container may need completely different formulations. Additives can also affect recyclability, repulpability, biodegradation behavior, odor, and food-contact suitability.
For this reason, performance claims should be based on the finished product and its intended conditions, not merely on the presence of fiber.
The mold determines the shape of the finished molded pulp part. It also affects forming efficiency, drainage, wall thickness, release, drying, shrinkage, and production speed.
A mold is therefore more than a copy of the packaged product’s external shape.
The forming mold is usually covered with a fine screen or porous surface. Vacuum pressure pulls water through this surface while fibers remain on the mold.
Its design must support:
Even vacuum distribution
Fast drainage
Consistent fiber deposition
Accurate cavity formation
Reliable product release
Easy mold cleaning
In transfer-molded production, a second mold removes the wet part from the forming mold and transfers it to the drying stage.
The relationship between the forming and transfer molds influences dimensional accuracy and surface quality.
Wet-pressed or thermoformed fiber products may use heated male and female molds. The wet part is compressed between matched surfaces while heat removes moisture and stabilizes the shape.
This route can produce:
Thinner walls
Higher density
Smoother surfaces
Sharper edges
More precise dimensions
A more refined retail appearance
Packaging engineers must consider several structural elements.
Slightly angled walls help the part release from the mold and allow finished trays to nest.
Insufficient draft can cause sticking or damage during removal. Excessive draft can waste space or reduce product positioning accuracy.
The mold must allow water and air to move efficiently. Poor drainage can produce thick and thin areas within the same part.
Ribs increase stiffness without requiring the entire product to become thicker. Their location should correspond to expected loads and product contact points.
Fiber products change dimensions as moisture is removed. Mold dimensions must account for expected shrinkage during pressing and drying.
A cavity may hold the product securely but still be inconvenient for the final user. Finger notches or access areas may be needed to allow easy removal.
Dezhou Chunyang reports a self-developed mold design and production system as part of its molded pulp manufacturing capabilities. Its website also describes automated production lines and dedicated mold development for custom packaging projects.
Once the slurry and mold are ready, the forming mold enters or contacts the pulp suspension.
A vacuum is applied through the mold. Water passes through the screen, while fibers accumulate on the mold surface.
This creates a wet three-dimensional fiber structure.
The forming cycle must be controlled carefully because fiber deposition is affected by:
Vacuum pressure
Forming time
Slurry concentration
Fiber length
Slurry circulation
Mold geometry
Screen condition
Drainage resistance
Deep cavities, sharp transitions, narrow channels, and complex ribs may be more difficult to form evenly than simple open trays.
If vacuum distribution is uneven, the product may develop:
Thin corners
Heavy edges
Weak walls
Incomplete cavities
Excessive weight variation
Local surface defects
The manufacturer may need to modify the mold drainage pattern, slurry formulation, forming time, or structural design to correct these issues.
After forming, the newly molded part contains a significant amount of water.
Vacuum extraction removes part of this moisture before the wet part is released or transferred. In some production systems, compressed air assists with separation from the mold.
At this stage, the product has its basic geometry but remains soft and vulnerable to deformation.
The wet part must be strong enough to:
Separate from the forming screen
Transfer without tearing
Maintain its cavity shape
Enter the press or drying system
Avoid folding or collapsing
Transfer conditions are especially important for products with deep cavities, narrow walls, handles, or large unsupported areas.
If the part is removed too early, it may tear or deform. If excessive vacuum is applied for too long, production efficiency may decline or the product may become difficult to release.
Drying is one of the most important and energy-intensive stages of molded pulp production.
The objective is not only to remove water. Drying must also stabilize the geometry, control shrinkage, establish the final density, and prevent warping.
Different products may use different drying routes.
A formed part may be placed on trays or supports and passed through a heated drying system.
This method is common for functional packaging where a natural fiber texture is acceptable.
Its advantages can include suitability for:
Egg trays
Beverage carriers
Agricultural products
Industrial transport trays
Thick-wall packaging
However, uncontrolled drying can cause:
Warping
Uneven shrinkage
Cracking
Excessive residual moisture
Surface discoloration
Variable dimensions
Airflow, temperature, humidity, loading density, and drying time must therefore be balanced.
Some molded products are dried first and then compressed between heated molds.
Hot pressing can improve:
Flatness
Surface smoothness
Dimensional accuracy
Edge definition
Density
Stackability
It may also help correct limited deformation from the initial drying stage.
For higher-end molded fiber packaging, the wet part can be pressed and dried inside heated matched molds.
Pressure improves fiber contact and surface definition, while heat removes moisture.
This method is suitable for packaging requiring a smoother and more refined appearance, but it generally requires more precise tooling and process control.
The product should not leave the drying stage with significantly different moisture levels between thick and thin areas.
Uneven residual moisture can lead to:
Delayed warping
Dimensional changes during storage
Mold growth
Reduced compression strength
Surface marks
Unstable stacking
The website describes a dual drying system combined with automated process control to support consistent molded pulp production and uniform drying.
After drying, some products require secondary cutting operations.
Trimming removes excess fiber from the perimeter and creates the final external shape. Punching can produce holes, slots, handles, drainage openings, or ventilation areas.
Depending on the design, finishing may include:
Perimeter trimming
Die cutting
Hole punching
Slot creation
Edge compression
Corner finishing
Surface cleaning
Removal of loose fibers
Trimming accuracy is particularly important when the product must fit tightly inside an outer carton or align with another packaging component.
Poor trimming can cause:
Sharp or uneven edges
Incorrect carton fit
Difficulty in automated packing
Inconsistent appearance
Poor nesting
Damage to adjacent packaging parts
The trimming method should be considered during mold design rather than added as an afterthought.
Basic molded pulp is absorbent and has a visible fiber texture. Some applications require additional finishing.
Possible treatments include:
Water-resistant treatment
Oil-resistant treatment
Heat-resistant formulation
Antistatic treatment
Surface coating
Coloring
Printing
Embossing
Debossing
Label application
Lamination
Assembly with cartons or sleeves
Liquid-resistant molded pulp products may use internal additives, surface treatments, coatings, or a combination of methods.
The correct treatment depends on:
Liquid type
Contact temperature
Exposure duration
Required wet strength
Food-contact conditions
Medical-use conditions
Disposal requirements
A coffee carrier exposed to condensation does not require the same barrier performance as a bowl intended to hold liquid for an extended period.
Color can be influenced by the fiber itself or introduced through pigments and coatings.
Natural brown or off-white fiber finishes are common, while premium retail inserts may require more controlled shades.
Color consistency can be affected by:
Raw material batches
Moisture content
Drying temperature
Fiber blending
Pigment dispersion
Surface compression
Logos, recycling symbols, product identifiers, and instructions can sometimes be formed directly into the product surface.
Embossing is most effective when the mold, wall thickness, pressing conditions, and required visual depth are designed together.
Quality control should take place throughout production rather than only after the products are finished.
A typical inspection program may include several categories.
The manufacturer may evaluate:
Fiber type
Color
Cleanliness
Moisture
Contamination
Supplier documentation
Batch identification
During forming and drying, operators may monitor:
Slurry concentration
Product wet weight
Forming time
Vacuum stability
Press temperature
Drying conditions
Cycle time
Defect frequency
Completed molded pulp products can be checked for:
Dimensions
Product weight
Wall thickness
Residual moisture
Surface quality
Edge condition
Warping
Cracks
Incomplete forming
Nesting performance
Compression strength
Liquid resistance
Product fit
The required testing depends on the packaging application.
Protective inserts may require:
Drop testing
Vibration testing
Compression testing
Stacking evaluation
Transit simulation
Foodservice products may require:
Oil resistance
Water resistance
Temperature exposure
Deformation testing
Food-contact documentation
Medical pulp products may require more specific controls related to raw materials, liquid retention, wet strength, cleanliness, processing, and compatibility with the intended disposal system.
Many molded pulp products are designed to nest inside one another.
Efficient nesting reduces the volume required for:
Factory storage
Carton packing
Container loading
Customer warehousing
Movement to the packing line
However, products should not nest so tightly that operators cannot separate them.
Anti-locking features, stacking stops, draft angles, and controlled surface friction can help maintain a practical balance between compact packing and easy separation.
Finished products should also be stored under suitable conditions. Excessive humidity may cause fiber packaging to absorb moisture and change shape or strength.
Packing areas should protect the products from:
Rain
High humidity
Dirt
Crushing
Odors
Direct contact with the floor
Uncontrolled temperature changes
For applications with stricter cleanliness requirements, packaging materials and storage procedures may need additional controls.
Trimming waste, rejected parts, and certain clean production scraps may be returned to the pulping process.
The scrap must normally be:
Clean
Compatible with the selected fiber formulation
Free from unsuitable coatings
Free from contamination
Properly identified and stored
Reusing production scrap can reduce material loss, but the proportion of recovered material must still be controlled. Excessive recycling within the production loop may affect fiber length, color, drainage, surface quality, and finished-product strength.
The manufacturer states that defective molded pulp products and production waste can be returned to its fiber recovery system as part of its sustainable pulp manufacturing approach.
There is no single manufacturing specification suitable for every molded pulp product.
Product requirement | Likely process emphasis |
|---|---|
Low-cost functional transport tray | Efficient forming, oven drying, stacking strength |
Egg tray | Cavity protection, ventilation, compression and nesting |
Coffee cup carrier | Wet strength, grip structure, loaded balance |
Wine bottle insert | Bottle positioning, neck support, carton fit |
Medical pulp container | Clean fiber, liquid resistance, wet strength, process control |
Electronic product insert | Dimensional fit, cushioning, antistatic options |
Cosmetic or gift insert | Smooth surface, color consistency, accurate trimming |
Plant pot | Wet behavior, drainage, root compatibility, degradation conditions |
The final process should therefore be selected according to the product’s real operating conditions rather than according to a generic molded pulp specification.
Businesses can review the manufacturer’s existing range of molded pulp packaging products to understand how structure and finishing vary between medical containers, beverage trays, egg packaging, plant pots, and gift inserts.
Understanding common defects helps buyers evaluate samples more effectively.
Possible causes include poor slurry circulation, blocked mold screens, uneven vacuum distribution, or difficult geometry.
Warping may result from uneven drying, inconsistent wall thickness, poor stacking during cooling, or incorrect moisture levels.
These can occur when trimming tools are worn, cutting conditions are unstable, or the product is insufficiently supported.
Sharp corners and deep transitions may receive fewer fibers than open areas. The mold drainage pattern or product geometry may need modification.
Cracking can result from excessive drying, unsuitable fiber composition, abrupt structural transitions, or high stress during demolding.
Products may become difficult to separate if draft angles, stacking stops, surface friction, or dimensional consistency are not properly controlled.
Weight variation can indicate changes in slurry consistency, forming time, vacuum conditions, fiber distribution, or wet-part drainage.
A good supplier should not simply remove defective parts during final inspection. It should identify the process variable that caused the defect and correct the underlying issue.
A custom molded pulp project normally moves through several development stages:
Product requirement review
Preliminary structural design
Three-dimensional modeling
Mold design
Prototype or sample production
Product fit evaluation
Packaging performance testing
Design modification
Pilot production
Mass-production approval
The first sample should not be evaluated only by appearance.
Buyers should also check:
Product fit
Ease of insertion and removal
Contact with fragile areas
Carton compatibility
Nesting
Loaded stacking
Packaging line efficiency
Moisture performance
Transportation protection
Dimensional consistency
Changes made before tooling and production approval are usually easier to manage than corrections introduced after mass production begins.
The manufacturing cycle for each part may be relatively short, but a custom project also includes requirement analysis, structural design, mold manufacturing, sampling, testing, adjustment, and production scheduling. The total lead time depends on product complexity, tooling, surface requirements, treatments, and order volume.
Dry-pressed products are generally formed, dried, and then optionally hot-pressed to improve shape and surface quality. Wet-pressed products are compressed and dried between heated matched molds, usually producing a smoother, denser, and more precise finish.
Vacuum pulls water through the porous mold surface while depositing fibers on the mold. It helps form the three-dimensional wet part and remove part of its moisture before transfer and drying.
Standard products such as common egg trays or cup carriers may use existing molds. Packaging designed around a specific product usually requires customized tooling.
Its liquid resistance can be improved through additives, coatings, surface treatments, pressing, and structural design. The required solution depends on the liquid, temperature, exposure time, compliance requirements, and preferred disposal route.
The fiber structure contracts as water is removed during pressing and drying. The amount and direction of shrinkage depend on fiber composition, wall thickness, mold geometry, moisture distribution, pressure, and drying conditions.
Clean and compatible production scrap can often be repulped and returned to the process. Coated, contaminated, or mixed-material waste may require separate evaluation.
The molded pulp manufacturing process combines fiber preparation, slurry control, mold engineering, vacuum forming, dewatering, drying, pressing, finishing, and inspection.
The visible product is only the final result. Its performance is determined by many less visible decisions, including fiber selection, mold drainage, moisture control, shrinkage allowance, drying uniformity, trimming accuracy, and quality testing.
A reliable molded pulp manufacturer should be able to explain not only what material is used, but also:
Why the selected process is suitable
How the mold supports the product
How moisture and shrinkage are controlled
What treatments are applied
Which tests are performed
How consistency is maintained during mass production
Dezhou Chunyang provides mold design, sample development, molded pulp manufacturing, functional customization, quality inspection, and delivery support for medical, beverage, agricultural, foodservice, electronic, beauty, and gift packaging projects.
